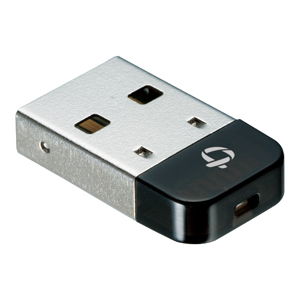

型番 | BT-Micro4 |
---|---|
Bluetooth部仕様 | |
バージョン | Bluetooth Ver 4.0 + EDR/LE |
通信方式 | FHSS(周波数ホッピング方式) |
最大通信距離 | 25m (屋内見通し距離) |
周波数帯域 | 2.4GHz(2402〜2480MHz) |
送信電力 | 6dBm |
受信感度 | -85dBm |
最大通信速度 | 2.1Mbps/1Mbps (EDRモード/LEモード) |
サポートプロファイル | Advanced Audio Distribution Profile (A2DP) (Source) A/V Remote Control Profile (AVRCP) (Target/Controller) Dial-Up Networking Profile (DUN) (Data Terminal) Device Identification Profile (DID) File Transfer Profile (FTP) (Client/Server) Hardcopy Replacement Profile (HCRP) (Host) Hands-Free Profile (HFP) (Audio Gateway) Human Interface Device Profile (HID) (Host) Object Push Profile (OPP) (Client/Server) Personal Area Network Profile (PAN) (PAN-U Client, PAN GN) Serial Port Profile (SPP) (Device A/B) |
ハードウェア仕様 | |
対応機種 | USB2.0/1.1を標準装備したPC/AT互換機 |
インタフェース | USB2.0/1.1(タイプAコネクタ) |
電源 | DC5V(USB給電) |
消費電力 | 300mW未満 |
外形寸法 | 約12.5(W)×4.5(H)×20.5(D)mm |
重量 | 約1.7g |
動作時環境 | 温度:0〜45℃ |
湿度:10〜90%(結露なきこと) | |
保存時環境 | 温度:-20〜60℃ |
湿度:10〜90%(結露なきこと) | |
その他 | |
対応OS | Windows 11(64bit) / Windows 10(32bit/64bit) / Windows 8.1(32bit/64bit) / Windows 8(32bit/64bit) / Windows 7(32bit/64bit) ※Windows 11は、標準のドライバをご利用ください。 ※Windows7(32bit/64bit)は、一部機能をご利用いただけない場合があります。 |
保証期間 | 1年間 |
